What Is Flow Cytometry? A Guide to the Basics and Principles

Flow cytometry is a powerful analytical technique used to measure physical and chemical characteristics of a population of cells or particles. The process involves suspending cells in a fluid and injecting them into a flow cytometer. As the cells flow single-file through a laser beam, the instrument analyzes them individually at high speed.

This technique measures various parameters simultaneously, including cell size, internal complexity, and fluorescence intensity. It provides detailed, quantitative data on heterogeneous cell populations, making it essential for research and clinical diagnostics.

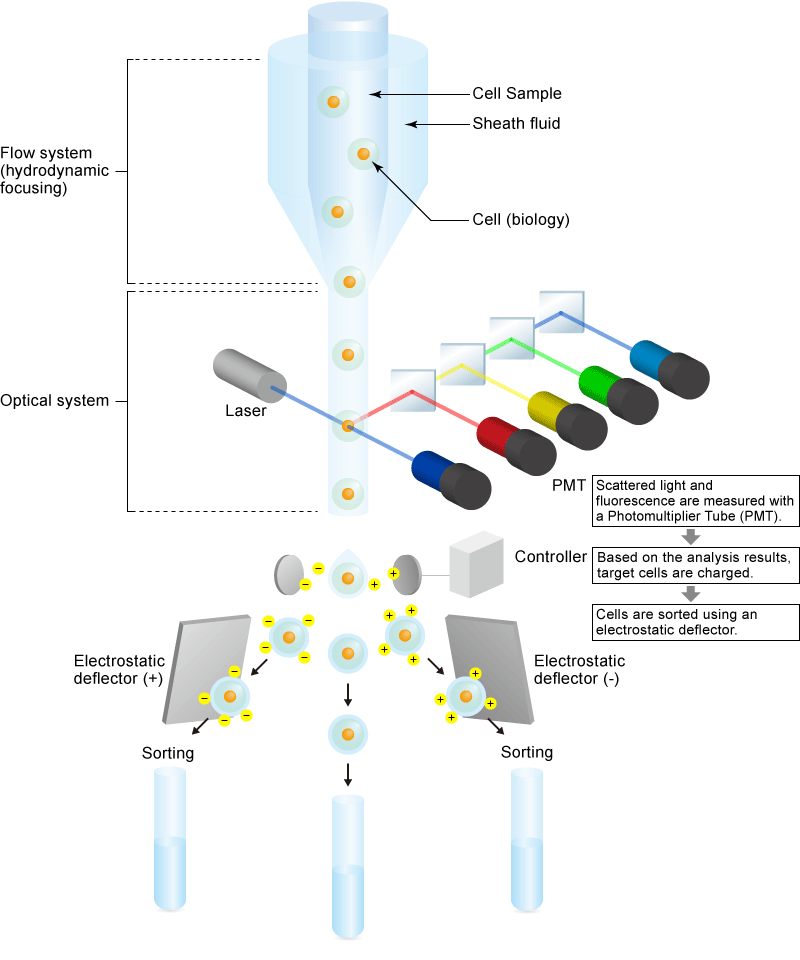

A flow cytometer integrates three main systems: fluidics, optics, and electronics.

• Fluidics System: Transports cells in a stream to the laser beam for interrogation. Using a sheath fluid, the system applies hydrodynamic focusing to align cells in a single file.
• Optics System: Consists of lasers to illuminate the particles and optical filters to direct light signals to detectors. Photomultiplier Tubes (PMTs) are typically used to detect scattered light and fluorescence with high sensitivity.
• Electronics System: Converts the analog light signals detected by the PMTs into digital data for computer analysis.

Cell Sorting Mechanism
Some flow cytometers, known as cell sorters, can physically isolate specific cells of interest from a mixed population. Based on the analysis of each cell, the instrument applies a precise electrical charge to the droplet containing the target cell. As the droplet passes through high-voltage deflection plates, the electrostatic field deflects it into a collection tube. This allows for the non-destructive recovery of cells for further culture or analysis.

Proper planning is critical for successful flow cytometry experiments.

• Fluorochrome Assignment: Carefully assign fluorescent dyes to antibodies to minimize spectral overlap (spillover). Consider the excitation/emission spectra of the dyes and the configuration of the instrument's lasers and filters.
• Sample Preparation and Staining: Select the appropriate staining protocol (surface, intracellular, or indirect staining) based on the target application.
• Filtration: Filter samples immediately before analysis to remove cell clumps. Aggregates can clog the fluidics system and compromise data integrity.
