Selecting an X-ray Inspection System

Published: 2019-01-07, M.P. / Updated: 2026-01-21, T.N.

X-ray inspection systems enable the non-destructive analysis of internal structures and defects invisible to the naked eye. Matsusada Precision offers a comprehensive lineup, ranging from compact, high-precision benchtop units to large-scale, high-penetration systems. The key to selecting the right model is defining your sample size and inspection objectives. Use this guide to identify the optimal system based on your specific requirements.

Keys to Choosing an X-ray Inspection System

Select by Tube Voltage
Select by Stage Type
Search by applications

Select by Tube Voltage

Matsusada Precision provides X-ray inspection systems with tube voltages ranging from 20 kV to 130 kV. Tube voltage determines the penetrating power of the X-rays. Higher tube voltages generate shorter wavelengths, allowing the X-rays to penetrate denser or thicker samples. Conversely, lower tube voltages generally provide higher image contrast for low-density materials or light elements.

UP to 130kV

Tube voltage	Focus size	Model
40kV to 130kV	micro-focus X-ray tubes	precision µX8600
40kV to 130kV	micro-focus X-ray tubes	µRay8400-LF
40kV to 130kV	micro-focus X-ray tubes	µRay8600
40kV to 130kV	micro-focus X-ray tubes	µRay8700-LF
40kV to 130kV	micro-focus X-ray tubes	µRay8760-LF
40kV to 130kV	micro-focus X-ray tubes	precision CT9600
40kV to 100kV	Mini-focus X-ray tubes	precision µB4600-LC100

UP to 90kV

Tube voltage	Focus size	Model
30kV to 90kV	micro-focus X-ray tubes	precision µB3600
30kV to 90kV	micro-focus X-ray tubes	precision µX7800
30kV to 90kV	micro-focus X-ray tubes	precision µB4500
30kV to 90kV	micro-focus X-ray tubes	precision µB4600-LM90
40kV to 90kV	Mini-focus X-ray tubes	precision µB4600

UP to 60kV

Tube voltage	Focus size	Model
30kV to 60kV	micro-focus X-ray tubes	precision µB3200
20kV to 60kV	micro-focus X-ray tubes	precision µB4600-LM60
20kV to 60kV	Mini-focus X-ray tubes	precision µB4600-LP60

Select by Stage Type

Select the stage configuration that best matches your sample dimensions and inspection workflow. For thorough inspection of tiny components, a compact stage ensures precision and space efficiency. For larger components or simultaneous inspection of multiple parts, a model equipped with a large-capacity stage is recommended.

XY stage

Stage size [X x Y]	Stroke [Xs x Ys]	Model
400 mm x 450 mm	400 mm x 400 mm	precision µX8600
350 mm x 450 mm	350 mm x 350 mm	µRay8400-LF
330 mm x 340 mm	180 mm x 250 mm	precision µB4600
265 mm x 350 mm	265 mm x 180 mm	precision µX7800
225 mm x 280 mm	150 mm x 200 mm	precision µB3200
120 mm x 140 mm	120 mm x 120 mm	precision µB3600

Turn table

Stage size [Φ x H]	Model
200 mm x 700 mm	µRay8760-LF
200 mm x 340 mm	µRay8700-LF
200 mm x 250 mm	precision CT9600
120 mm x 175 mm	precision µB4500
Φ320 mm	precision µX8600-LR

In addition, we offer a wealth of options for upgrading the system listed above to increase performance and make it easier to use. Our experienced staff will answer any inquiries you may have regarding non-destructive inspections using an X-ray system, as well as your intended use and desired specifications. Please contact us via the Contact page. Our staff will be happy to answer all of your questions.

Typical Applications

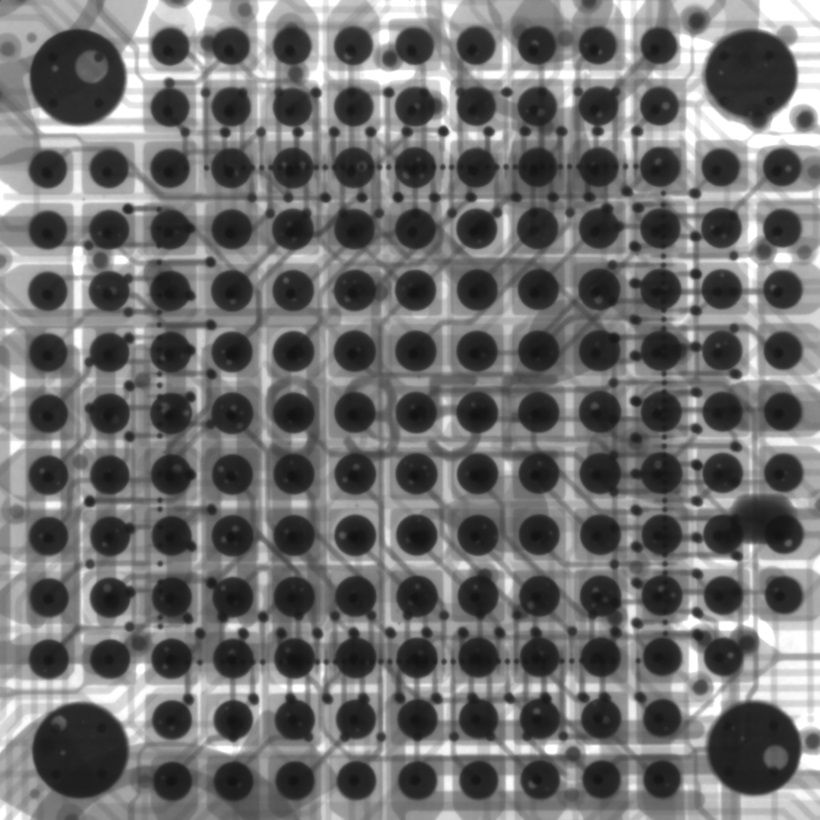

Matsusada Precision's micro-focus X-ray inspection systems are engineered for diverse non-destructive testing (NDT) applications across various industries.
